Direct Drives

Safedrive®

The SI "Safedrive®" range of drives are for doors which require an anti-fallback device.

The patented safety device is built into the gear and the drive unit fitted directly to the door shaft.

Suitable controls can be found under: TS




Applications Can Include:
  • Roller Shutters
  • Rolling Grilles
  • Sectional doors without counterbalancing
  • High Speed Doors
  • Vertical Lift Doors
Direct Drive

Select Type

Go back to View All Drives

ELEKTROMATEN SI

with single speed

“Safedrive®” ELEKTROMATEN SI are drives for industrial doors which require an anti-fallback device. The patented safety brake is built into the gear. The drive unit is fitted directly to the door shaft.

Torarten_SI_FU

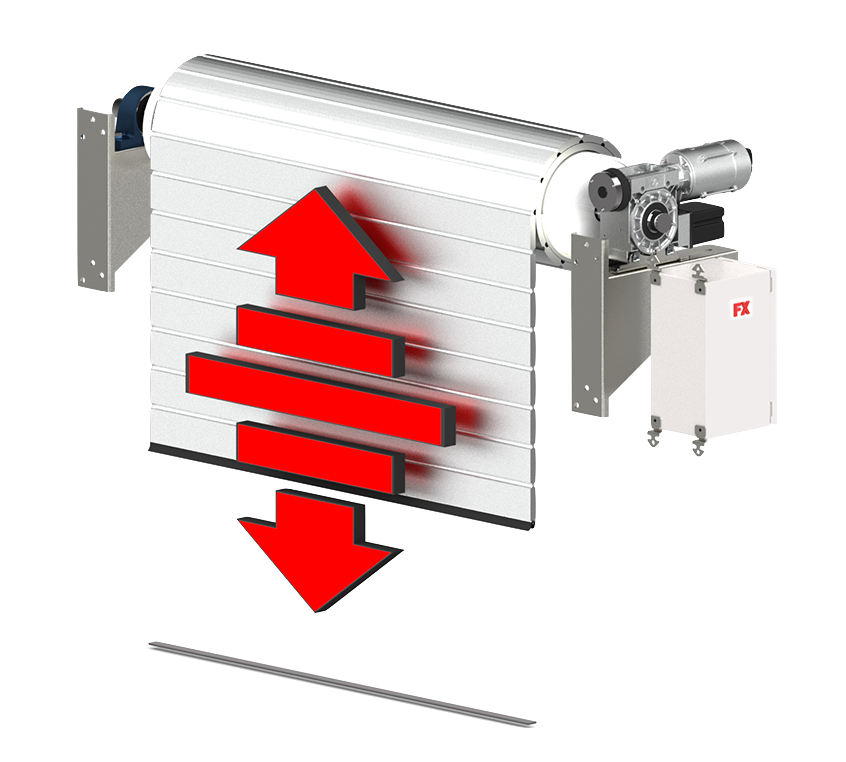

ELEKTROMATEN SI FI

with variable speed

“Safedrive®” ELEKTROMATEN SI FI are drives for industrial doors which require an anti-fallback device. The patented safety brake is built into the gear. The drive unit is fitted directly to the door shaft. In combination with GfA door controls TS 970, TS 971 or TS 981, the built-on frequency inverter (FI) offers the advantage of individually adjustable output speed with soft start as well as soft stop.

Select Gearbox Range

Go back to select speed
SI SG50F (Fixed)

SG50F

Torque: 35 - 140Nm
SG63F (Fixed)

SG63F

Torque: 80 - 250Nm
SG63F SIK-1

SG63F-SIK

Torque: 170 - 250Nm
SG85F (Fixed)

SG85F

Torque: 100 - 650Nm
SG115F (Fixed)

SG115F

Torque: 600 - 1800Nm
SG186F (Fixed)

SG186F

Torque: 2600 - 5000Nm

Select Gearbox Range

Go back to select speed
SI SG50F (var)

SG50F

Torque: 40 - 60Nm

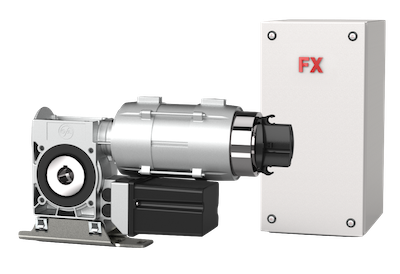

SG63F (var)

SG63F

Torque: 35 - 170Nm

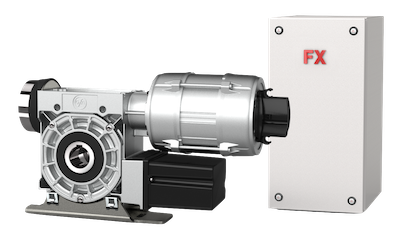

SG85F (var)

SG85F

Torque: 80 - 550Nm

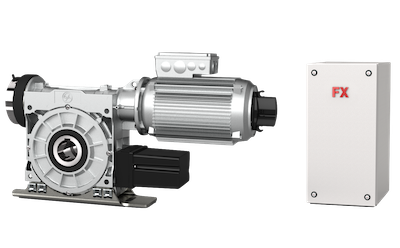

SG115F (var)

SG115F

Torque: 500 - 1800Nm
SG186F (var)

SG186F

Torque: 2600 - 5000Nm
